Bi-energy articulated booms hiring
HR 12
Convert units
HR 12

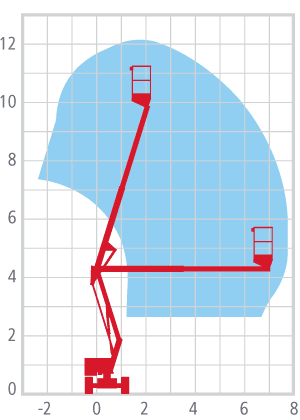

| Working height | 12,20 m |
| Platform height | 10,20 m |
| Type | HR 12 |
| Maximum outreach | 6,10 m |
| Lift capacity | 200 kg |
| Platform size | 110 x 66 cm |
| Length | 4,10 m |
| Width | 1,80 m |
| Height | 1,90 m |
| Weight | 2860 kg |
| Traction | 2WD |
| Power source | bi-energy |
| Slew | 360 |
| Width standard | 180 |
| Width narrow | 150 |
| Length stowed | 410 |
| Min weight standard | 2630 |
| Min weight narrow | 3060 |
| Turning radius inside | 2,22 m |
| Turning radius outside | 4,20 m |
| Gradeability | 25% |
Data is provided as an indication and may vary depending on the year and model.
- 12.20m (40ft) working height
- 6.10m (20ft) working outreach
- Weight Under 3.4 Tonnes: low cost transportation
- Bi-energy available: optimising utilisation
- Telescopic Upper Boom : greater accuracy when positioning platform
- Fully Proportional Hydraulic Controls: simple, reliable & easy to maintain
- Slide-Out Canopy: faster, easier access to engine
