Diesel articulated booms hiring
HA 32 PX
Convert units
HA 32 PX
| Supplier | HAULOTTE |
| Working height | 31,80 m |
| Platform height | 29,80 m |
| Type | HA 32 PX |

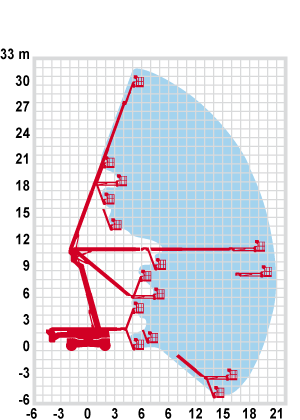

| Maximum outreach | 21,30 m |
| Lift capacity | 250 kg |
Platform size
 x  |
244 x 81 cm |

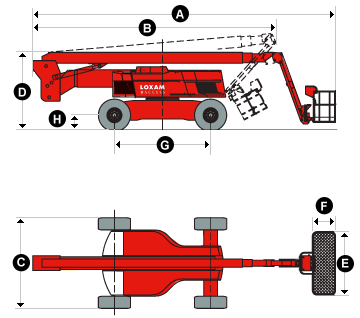

Length
 |
11,20 m |
Width
 |
2,53 m |
Height
 |
2,70 m |
| Weight | 21100 kg |
| Traction | 4WD |
| Power source | diesel |
| Turntable rotation | 360° |
| Hydraulic platform rotation | 180° |
| Gradeability | 45% |
| Fly jib range of motion | 140 |
| Outside turning radius | 5,10 m |
| Up over clearance | 1135 |
| Width extended axles | 333 |
Data is provided as an indication and may vary depending on the year and model.
- 104 ft (32 m) working height
- 37 ft 3 in (11.35 m) up and over clearance
- Hydraulic differential lock and 15 in (38 cm) ground clearance for improved rough terrain capability
- Gradeability up to 45%
- Continuous 360° turntable rotation
- Full proportional controls and simultaneous boom functions improve functionality
- Load limiter in platform
- Improved working area through a positive/negative articulating fly jib with 140° movement
- 180° hydraulic platform rotation
- Robust, reliable and easy to maintain design
