Diesel articulated booms hiring
HA 20 PX
Convert units
HA 20 PX
| Supplier | HAULOTTE |

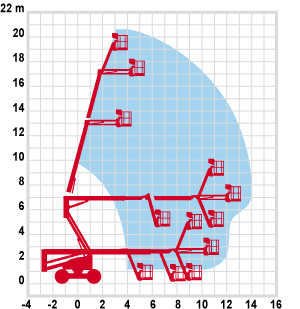

| Working height | 20,65 m |
| Platform height | 18,65 m |
| Type | HA 20 PX |
| Maximum outreach | 13,50 m |
| Lift capacity | 230 kg |

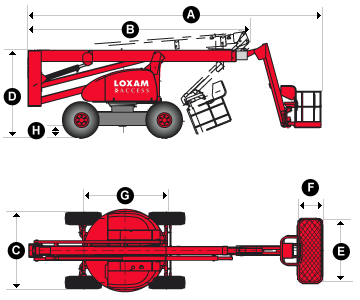

Platform size
 x  |
180 x 80 cm |
Length
 |
8,93 m |
Width
 |
2,38 m |
Height
 |
2,67 m |
| Weight | 12260 kg |
| Traction | 4WD |
| Power source | diesel |
Travel transport length
|
6,8 m |
| Turntable rotation | 360° |
| Hydraulic platform rotation | 180° |
| Gradeability | 40% |
| Outside turning radius | 3,90 m |
Data is provided as an indication and may vary depending on the year and model.
- Self propelled
- Up and over fly-jib
- 4 wheel steer
- Tilt alarm
- Robust and reliable design
- Improved working area
- 40% grade ability
- Telescopic upper boom for greater positioning of the basket
