Diesel articulated booms hiring
HA 16 PX
Convert units
HA 16 PX
| Supplier | HAULOTTE |

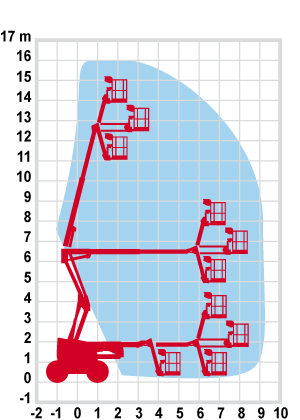

| Working height | 16 m |
| Platform height | 14 m |
| Type | HA 16 PX |
| Maximum outreach | 9,10 m |
| Lift capacity | 230 kg |

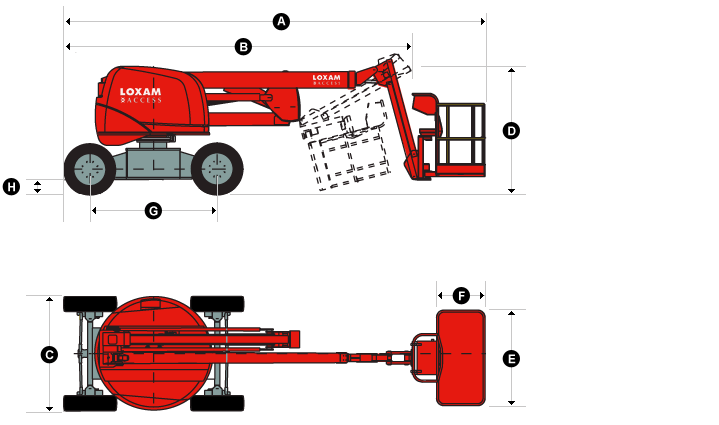

Platform size
 x  |
180 x 80 cm |
Length
 |
6,95 m |
Width
 |
2,30 m |
Height
 |
2,20 m |
| Weight | 7240 kg |
| Traction | 4WD |
| Power source | diesel |
Travel transport length
|
5,3 m |
| Turntable rotation | 360° |
| Hydraulic platform rotation | 180° |
| Gradeability | 50% |
Data is provided as an indication and may vary depending on the year and model.
- Hydraulic differential lock and 16 in (40 cm) ground clearance for improved rough terrain capability
- Gradeability up to 50%
- Continuous 360° turntable rotation
- 43 sec lift speed to full height
- Full proportional controls and simultaneous boom functions improve productivity
- Improved working area through a positive / negative articulating fly jib with 140° movement
- Zero tail swing
- 180° hydraulic platform rotation
- Improved design for travel / transport (HA 16 PX: 17.30 m / 17 ft 5 in transport length)
- Robust, reliable and easy to maintain design
- Improved safety due to load limiter in the basket
Photo gallery:
