COMPACT 8
Convert units
COMPACT 8
| Supplier | HAULOTTE |
| Working height | 8,18 m |
| Platform height | 6,18 m |
| Type | COMPACT 8 |
| Lift capacity | 350 kg |
Platform size
 x  |
230 x 80 cm |
| Plat. size ext. | 322 x 80 cm |

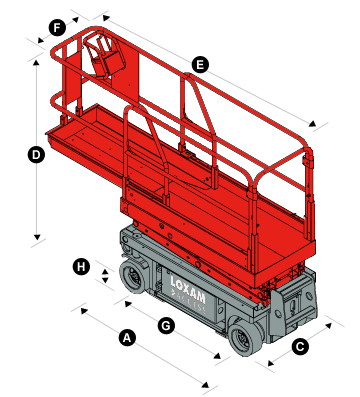

Length
 |
2,31 m |
Width
 |
0,81 m |
Height
 |
1,99 m |
| Weight | 1730 kg |
| Traction | 2WD |
| Power source | electric |
| Height stowed folding guardrails | 214 |
| Length with access steps | 246 |
Wheelbase
|
186 |
| Gradeability | 23% |
| Driveable up to | 827 |
| Ground clearance | 130 |
| Ground clearance with potholes | 25 |
| Capacity | 450 kg |
| Capacity on extension | 150 kg |
| Tires | 1 |
Data is provided as an indication and may vary depending on the year and model.
- Stowed height allows passage through standard doorways
- 32 in (0.81 m) width allows operation in the most congested areas
- 7 ft 10 in (2.38 m) outside turning radius ensures excellent manoeuvrability
- 5 in (12.5 cm) ground clearance allows for both inside and outside use
- Pot Hole protection and load limiter in cage ensures maximum safety
- Driveable at full height
- High operating autonomy
- Robust, reliable and easy to maintain design
