Electric scissors hiring
COMPACT 12
Convert units
COMPACT 12
| Supplier | HAULOTTE |

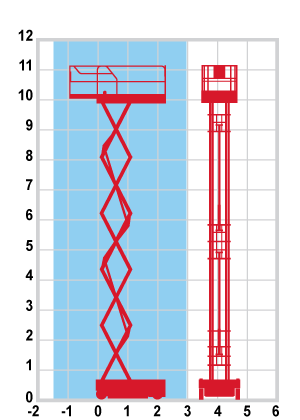

| Working height | 12 m |
| Platform height | 10 m |
| Type | COMPACT 12 |
| Lift capacity | 300 kg |

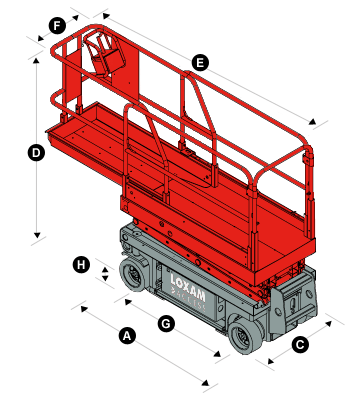

Platform size
 x  |
230 x 120 cm |
| Plat. size ext. | 322 x 120 cm |
Length
 |
2,31 m |
Width
 |
1,20 m |
Height
 |
2,38 m |
| Weight | 2630 kg |
| Traction | 2WD |
| Power source | electric |
| Length with access steps | 246 |
| Guardrail height | 238 |
Wheelbase
|
186 |
| Gradeability | 23% |
| Driveable up to | 800 |
| Ground clearance | 130 |
| Ground clearance with potholes | 25 |
| Capacity | 300 kg |
| Capacity on extension | 150 kg |
| Tires | 1 |
Data is provided as an indication and may vary depending on the year and model.
- 660 lb (300 kg) platform capacity
- 3 ft 11 in (1.20 m) width allows operation in the most congested areas
- 5 in (13 cm) ground clearance allows for both inside and outside use
- Pothole protection ensures maximum safety
- High operating autonomy
- Robust, reliable and easy to maintain design
