Diesel telescopic booms hiring
16 TPX
Convert units
16 TPX

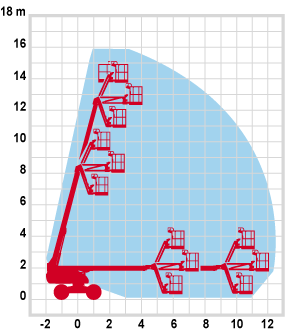

| Working height | 15,44 m |
| Platform height | 13,44 m |
| Type | 16 TPX |
| Maximum outreach | 12,30 m |
| Lift capacity | 230 kg |
Platform size
 x  |
180 x 80 cm |

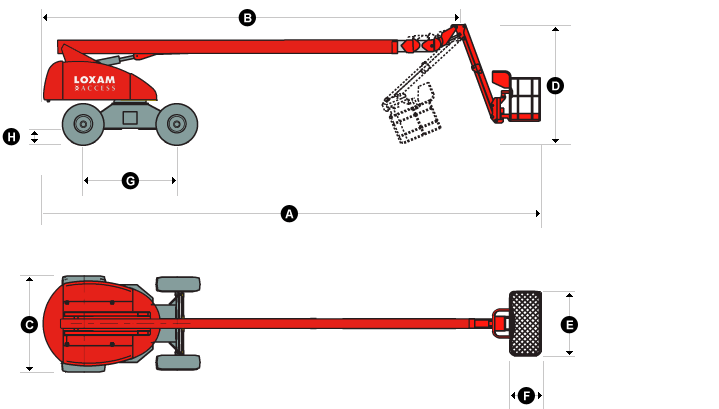

Length
 |
8,42 m |
Width
 |
2,30 m |
Height
 |
2,21 m |
| Weight | 7000 kg |
| Traction | 2WD |
| Power source | diesel |
Data is provided as an indication and may vary depending on the year and model.
- Four-wheel drive with four-wheel brakes
- Extendable axles, operated from platform
- Three diesel engine options
- 8 ft (2.44 m) steel platform
- Fully proportional platform controls with ramp up/down feature
- Hydraulic platform rotation
- 360° continuous turntable rotation
- Closed-loop hydrostatic drive
- Positive traction drive
- Drive enable system
- Self-levelling platform
- Onboard full diagnostics
- Anti-restart engine protection
- Auto engine fault shutdown
- Hydraulic oil cooler
- Engine gauge package
- AC wiring to platform
- Foam-filled tires
